Sunshine Innovation Sams Turret Milling Machine


China X6325B Turret Milling Machine

NMTZC006:

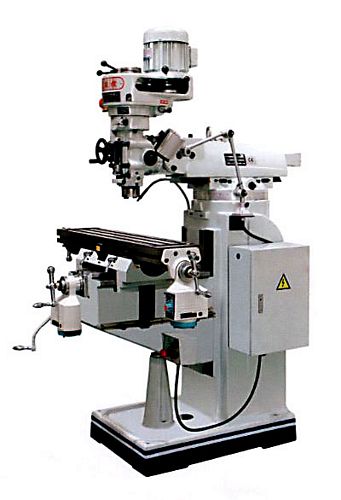

New, China X6325B (10" x 54") Turret Milling Machine

  • Table size 254 x 1370mm
  • Longitudinal travel 950mm
  • Cross travel 400mm
  • Vertical travel 420mm
  • T-slot no. and size 3 x 16
  • Ram travel 470mm
  • Distance from spindle nose to table surface 0-405mm
  • Spindle hole taper R8 (optional ISO30/40)
  • Spindle travel 127mm
  • Spindle speed (50 HZ) 65-4500 rpm; (60 HZ) 80-5440 rpm
  • Auto quill feed 0.04 (0.0015")/0.08 (0.003")/0.15 (0.006") mm/r, 3 steps
  • Spindle motor 2.25 kw / 3 HP
  • Head swivel 90°
  • Head tilting 45°
  • Weight approximately 1.4 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret miller), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
