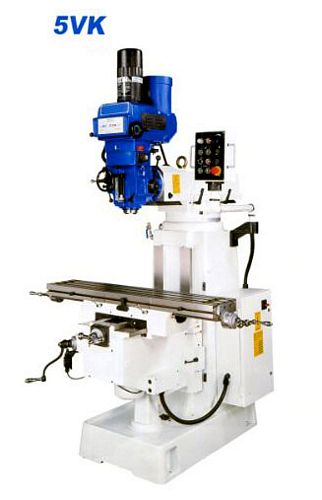

New, Taiwan 5VK Turret Milling Machine
- Table size 1270 x 254mm
- T-slot (w x no. x pitch) 16 x 3 x 63
- Travel manual (X x Y x Z) 775 x 400 x 450mm
- Travel auto (X x Y x Z) 700 x 400 x 450mm
- Spindle nose ISO 40
- Spindle speeds 80-3800 RPM (steps inverter variable)
- Swivelling angle 45° (R&L)
- Quill travel 127mm
- Quill feeds / rev: 0.04 / 0.08 / 0.15
- Spindle nose to table 55-505mm
- Spindle centre to column 130-550mm
- Cross travel of ram 420mm
- Horizontal rotation of ram 360°
- Motor 5HP - 4P Inverter
- Coolant pump 1/8 HP - 2P
- Overall Dimensions: 1,480 mm (L) x 1,435 mm (W) x 2,330 mm (H)
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
