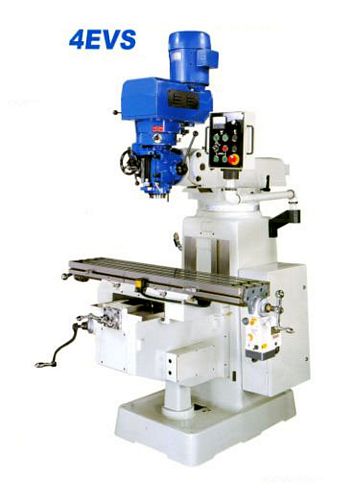

Taiwan 4EVS Turret Milling Machine

NMTES042:

New, Taiwan 4EVS Turret Milling Machine

  • Table size 1270 x 254mm
  • T-slot (w x no. x pitch) 16 x 3 x 63
  • Travel manual (X x Y x Z) 775 x 400 x 406mm
  • Travel auto (X x Y x Z) 700 x 400 x 406mm
  • Spindle nose R8 or N.S.T 30
  • Spindle speeds 60-3600 RPM (steps inverter variable)
  • Swivelling angle 45° (R&L, F&B)
  • Quill travel 127mm
  • Quill feeds / rev: 0.04 / 0.08 / 0.15
  • Spindle nose to table 40-406mm
  • Spindle centre to column 200-680mm
  • Cross travel of ram 480mm
  • Horizontal rotation of ram 360°
  • Motor 3HP - 4P Inverter
  • Coolant pump 1/8 HP - 2P (opt)
  • Overall Dimensions: 1,480 mm (L) x 1,500 mm (W) x 2,350 mm (H)
  • Weight approximately 1.3 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
