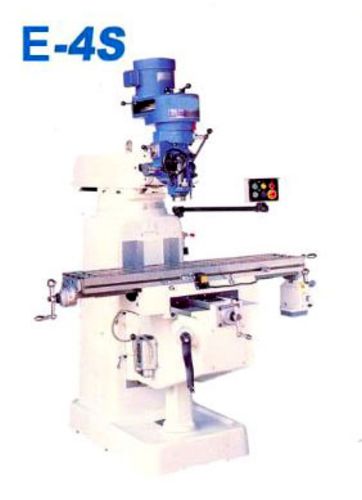

New, Taiwan E-4S Turret Milling Machine
- Working surface 1270 x 254mm
- T-slot (w x no. x pitch) 16 x 3 x 63
- Travel manual (X x Y x Z) 775 x 400 x 406mm
- Travel auto (X x Y x Z) 700 x 400 x 406mm
- Spindle nose R8 or ISO 30
- Spindle speeds 80-2720 RPM (8 steps)
- Swivelling angle 45° (R&L)
- Quill travel 127mm
- Quill feeds / rev: 0.04 / 0.08 / 0.15
- Spindle nose to table 40-446mm
- Spindle centre to column 200-680mm
- Cross travel of ram 480mm
- Horizontal rotation of ram 360°
- Motor 3HP - 4P
- Coolant pump 1/8 HP - 2P
- Overall Dimensions: 1,500 mm (L) x 1,500 mm (W) x 2,200 mm (H)
- Weight approximately 1.3 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Turret Milling Machine Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
