Zhongyang Sams Turret Milling Machine

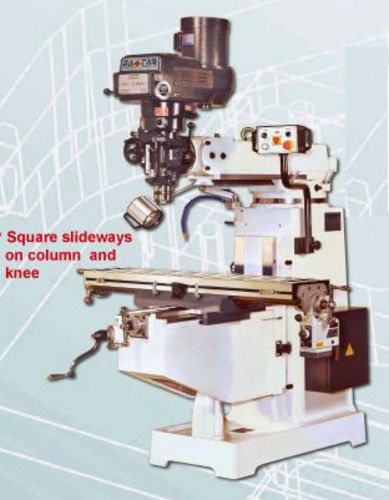

Taiwan 4KVA Vertical Turret Milling Machine

NMTES035:

New, Taiwan 4KVA Vertical Turret Milling Machine

  • Table size 250mm x 1370mm
  • X axis with dovetail
  • Y, Z axis square slideway
  • Longitudinal 900mm
  • Cross travel 380mm
  • Vertical travel 430mm
  • Spindle taper ISO40
  • Quill diameter 85mm
  • Spindle travel 127mm
  • Spindle speeds 70 - 4620 rpm (16 step)
  • Quill feeds per revolution of spindle 0.04 0.08 0.15 mm
  • Main motor 5 HP
  • Swivel angle to right and left 90°
  • Swivel angle to front and back 45°
  • Overall Dimensions: 1,420 mm (L) x 1,620 mm (W) x 1,880 mm (H)
  • Weight approximately 1.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
