Taiwan VH-2 Vertical & Horizontal Turret Milling Machine

NMTES034:

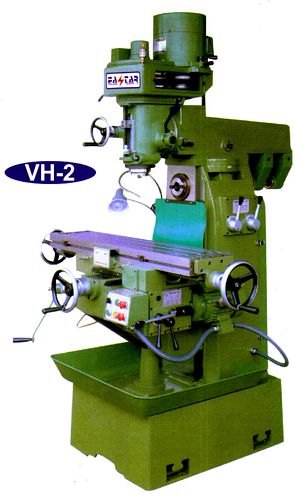

New, Taiwan VH-2 Vertical & Horizontal Turret Milling Machine

  • Table 240 x 1060mm
  • Longitudinal travel 560mm, Cross travel 300mm, Vertical travel 380mm
  • Range of longitudinal feed speed 13-157 mm/min, 6 steps
  • Range of longitudinal rapid speed 1350mm/min
  • Vertical Main Spindle:
  • Spindle speeds 10 speeds (3ph) / 5 speeds (1ph); 170-2860 rpm
  • Taper of spindle bore ISO 40
  • Quill travel 125mm
  • Head swivel (R&L) +-45°
  • Traverse of over arm 455mm
  • Over arm swivel angle 360°
  • Spindle nose to table surface 70mm-485mm
  • Spindle center to column surface 155mm-475mm
  • Horizontal Main Spindle:
  • Spindle speeds 63-1140 rpm, 6 steps
  • Taper of spindle bore ISO 40
  • Spindle center to table 0 - 440mm
  • Spindle center to over arm bottom 135mm
  • Vertical milling motor 2HP
  • Horizontal milling motor 3 HP
  • Table longitudinal feed motor 1 HP
  • Coolant pump motor 1/8 HP
  • Overall dimensions: 1,450 mm (L) x 1,475 mm (W) x 1,960 mm (H)
  • Weight approximately 1,250 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
