Taiwan VH-1 Vertical & Horizontal Turret Milling Machine

NMTES033:

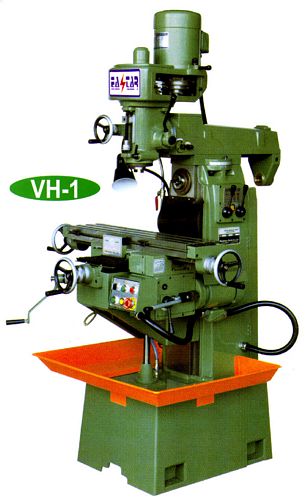

New, Taiwan VH-1 Vertical & Horizontal Turret Milling Machine

  • Table 180 x 760mm
  • Longitudinal travel 385mm, Cross travel 300mm, Vertical travel 370mm
  • Range of longitudinal feed speed 40-110 mm/min, 3 steps
  • Range of longitudinal rapid speed 1125mm/min
  • Vertical Main Spindle:-
  • Spindle 10 speeds (3ph) / 5 speeds (1ph); 213-2827 rpm
  • Taper of spindle bore ISO 30 or R8 or MT3
  • Quill travel 90mm
  • Head swivel (R&L) +-45°
  • Traverse of over arm 323mm
  • Over arm swivel angle 360°
  • Spindle nose to table surface 50mm-424mm
  • Spindle center to column surface 127mm-440mm
  • Horizontal Main Spindle:-
  • Range of spindle speeds (6 speeds) 63-700 rpm
  • Taper of spindle bore ISO 30 or R8 or MT3
  • Spindle center to table 0 - 357mm
  • Spindle center to over arm bottom 106mm
  • Vertical Milling motor 1 HP or 2HP
  • Horizontal milling motor 1 HP
  • Table longitudinal feed motor 1/2HP
  • Coolant pump motor 1/8 HP
  • Overall Dimensions: 1,137 mm (L) x 1,126 mm (W) x 1,905 mm (H)
  • Weight approximately 700 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
