Zhongyang Sams Turret Milling Machine


Taiwan 7VM Heavy Duty Turret Milling Machine

NMTES024:

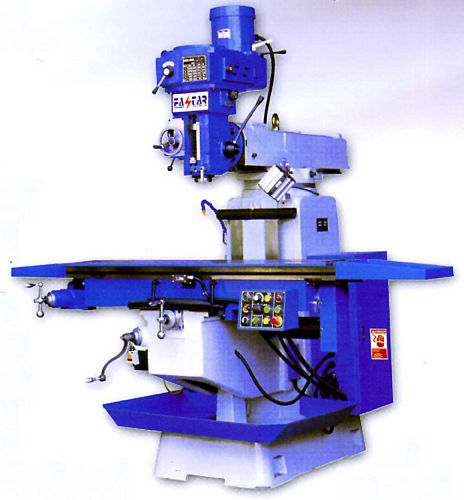

New, Taiwan 7VM Heavy Duty Turret Milling Machine

  • Table size 300 x 1370mm
  • Table travel (X) 800mm, (Y) 410mm, (Z) 480mm
  • Feed (X) 8 step (gear box) (60Hz): 30, 45, 75, 113, 218, 330, 548, 825 mm/min
  • Rapid traverse (X) 1290 mm/min
  • Spindle nose ISO40
  • Spindle speed 70 - 4200 RPM
  • Steps: variable
  • Distance from spindle nose to table top 30 - 440 mm
  • Quill feed: 0.04, 0.08, 0.15 mm/rev
  • Quill travel 127mm
  • Horizontal rotation of ram 360°
  • Cross travel of ram 535mm
  • Swiveling angle ±45°
  • Spindle motor 5 HP
  • Table feed motor 1/2 HP
  • Table elevating motor 1/2 HP
  • Coolant pump 1/8 HP
  • Overall Dimensions: 1,850 mm (L) x 1,570 mm (W) x 2,150 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
