Zhongyang Sams Turret Milling Machine


Taiwan 5VM Vertical Turret Milling Machine

NMTES020:

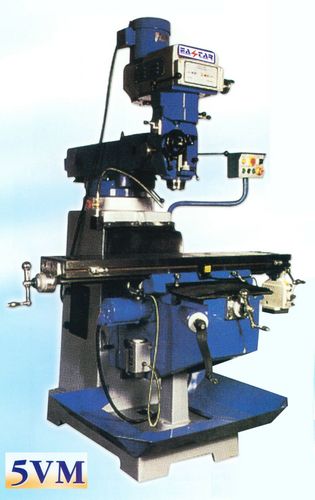

New, Taiwan 5VM Vertical Turret Milling Machine

  • Table size 250 x 1270mm
  • Longitudinal travel (X) manual 914mm
  • Longitudinal travel (X) with power feed 815mm
  • Cross travel (Y) 420mm
  • Knee travel (Z) 500mm
  • Distance from spindle nose to table top 25 - 533 mm
  • Distance from spindle center to column face 116 - 660 mm
  • Over arm travel 535mm
  • Quill travel 127mm
  • Quill feed 0.04, 0.08, 0.15 mm/rev
  • Quill diameter Ø100mm
  • Spindle speeds (60 Hz): 10 speeds 80 - 3600 RPM
  • Spindle taper ISO40
  • Spindle motor 5 HP
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.


Home | Turret Milling Machine Listing | New Machinery Categories

Upon request, our machines can be inspected and tested under power.
