Zhongyang Sams Turret Milling Machine

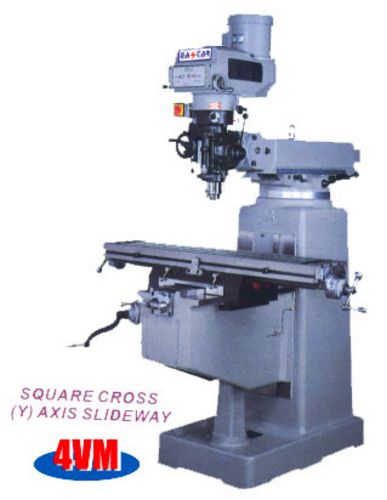

Taiwan 4VM Vertical Turret Milling Machine

NMTES012:

New, Taiwan 4VM Vertical Turret Milling Machine

  • Table size 250 x 1270mm
  • Longitudinal travel (X) manual 900mm
  • Longitudinal travel (X) with power feed 815mm
  • Cross travel (Y) 400mm
  • Knee travel (Z) 420mm
  • Distance from spindle center to column face 210 - 740 mm
  • Spindle speeds (60 Hz): 8 speeds 80 - 2720 RPM; 16 speeds 80 - 5440 RPM
  • Spindle taper R8 or ISO30
  • Over arm travel 508mm
  • Quill travel / diameter: 127mm / Ø85.7mm
  • Quill feeds 0.04 , 0.08, 0.15 mm/rev
  • Spindle motor 3 HP
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
