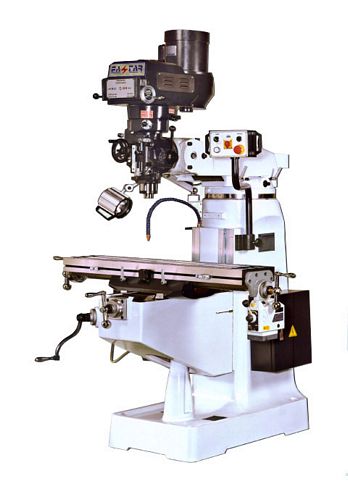

New, Taiwan 2M Vertical Turret Milling Machine
- Table size 228 x 1067mm
- Long travel (X) manual 700mm; Power feed 630mm
- Cross travel (Y) 330mm
- Knee travel (Z) 410mm
- No. of t-slots: 3
- T-slot width 16mm
- Distance from spindle center to column 160-490mm
- Distance from spindle nose to table surface 50-460mm
- Travel reduced with power feed (X axis) 60mm
- Head swivel angle (R/L) ±90°
- Head tilting angle (up/down) ±45°
- Ram travel 350mm
- Quill feed rate: 0.04, 0.08, 0.15 mm/rev
- Quill diameter 85.7mm
- Spindle speeds: 8 or 16 speeds (50 HZ) 60-3600 RPM; (60 HZ) 70-4200 RPM
- Spindle taper R8 or ISO30
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
