Zhongyang Sams Turret Milling Machine


Taiwan 1A Vertical Turret Milling Machine

NMTES003:

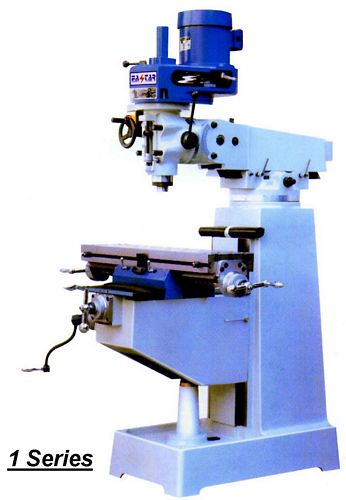

New, Taiwan 1A Vertical Turret Milling Machine

  • Table size 228 x 889mm
  • Longitudinal travel 520mm (manual or power feed)
  • Cross travel (Y) 305mm
  • Knee travel (Z) 400mm
  • Distance from spindle center to column face 160 - 480mm
  • Over arm travel 300mm
  • Quill travel/diameter 127mm/85.7mm
  • Quill feeds 0.04, 0.08, 0.15 mm/rev
  • Spindle speeds (60 Hz) 8 speeds 80 -2720 rpm
  • Spindle taper R8
  • Spindle motor 2 HP
  • Standard Accessories:
  • Tool box with tools, One shot lubrication, Arbor draw bar, Chip covers (front and rear), Forward/off/reverse switch
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
