Zhongyang Sams Turret Milling Machine

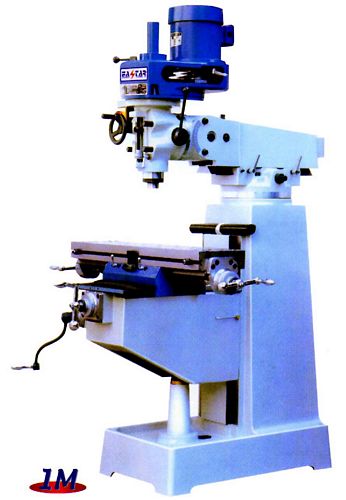

Taiwan 1M Vertical Turret Milling Machine


New, Taiwan 1M Vertical Turret Milling Machine

  • Table size 228 x 889mm
  • Longitudinal travel 610mm
  • Cross travel (Y) 300mm
  • Knee travel (Z) 380mm
  • No. of t-slots: 3
  • T-slot width 16mm
  • Distance from spindle center to column 140-450mm
  • Distance from spindle nose to table surface 50-430mm
  • Travel reduced with power feed (X axis) 40mm
  • Head swivel angle (R/L) ±90°
  • Head tilting angle (up/down) ±45°
  • Ram travel 310mm
  • Quill feed rate: 0.04, 0.08, 0.15 mm/rev
  • Quill diameter 85.7mm
  • Spindle speeds: 8 speeds (50 HZ) 70-2310 RPM; (60 HZ) 80-2720 RPM
  • Spindle taper R8 or ISO30
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
