Zhongyang Sams Milling Machine

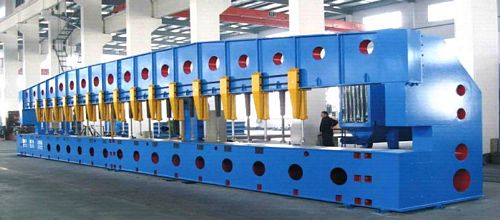

China SXBJ-6000 Edge Milling Machine

NMMZC001:

New, China SXBJ-6000 Edge Milling Machine

  • With Dual Milling Heads
  • Max Milling Length of Steel Plate 6000mm
  • Max distance between machine bed and jack 160mm
  • Max milling depth 10mm (at bevel)
  • Milling angle +/- 45°
  • Materials applicable: carbon steel
  • Milling heads motors 5.5 kw
  • Diameter of mitsubishi cutter: D=160mm
  • Spindle speed 125 - 820  r/min
  • Spindle adjustable value 60mm
  • Milling efficiency 0.13 - 1 m/min
  • Driven motor 2.2 kw
  • Fast forward & backward speed: V=4m/min
  • Hydraulic motor 5.5kw
  • Hydraulic pressure ≤3.5 mpa
  • Best surface finish ≤50um
  • Tolerance of bevel angle +/- 30°
  • Tolerance of milling at flat ≤0.5mm
  • Straightness accuracy of the rail span ≤0.5mm
  • Straightness accuracy of upper & bottom rail ≤0.2mm
  • Electric system: Schneider (Germany)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used milling machine (miller, jig miller, used milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
