Zhongyang Sams CNC Milling Machine


China XK5763/2 CNC Ram Type Universal Milling Machine

NMCZC008:

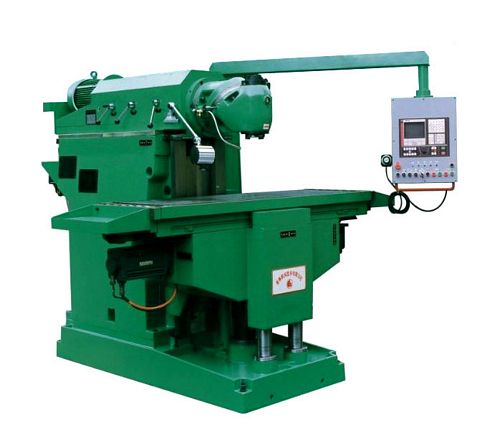

New, China XK5763/2 CNC Ram Type Universal Milling Machine

  • Working table (LxW) 2000 x 630mm
  • T-slot 7; (width x distance) 22 x 80mm
  • Longitudinal travel 1450mm
  • Cross travel 800mm
  • Vertical travel 500mm
  • Min distance between spindle nose and table surface 40mm
  • Spindle taper ISO 50
  • Spindle speed 36-1820 rpm, off 18
  • Feed range of table and ram: Longitudinal 10-3000; Cross 1-3000; Vertical 1-3000 mm/min
  • Rapid feed of table and ram: Longitudinal 6000; Cross 6000; Vertical 5000mm
  • Positioning accuracy  ±0.02
  • Reset accuracy ±0.01
  • Max bearing weight of table 2000 kg
  • Main motor 11 kw
  • Feed motor: Longitudinal 19.5 Nm; Cross 26 Nm, Vertical 32 Nm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
