Zayer THERA 21000 Gantry Type Machining Center

NMCZC006:

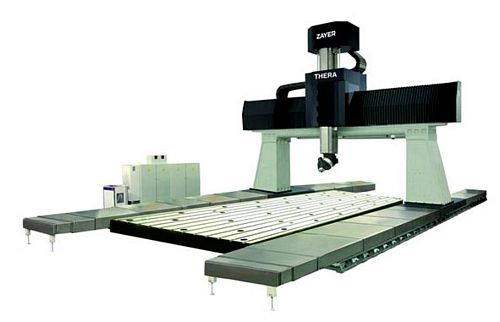

New, Zayer THERA 21000 Gantry Type Machining Center

  • Table surface 21,500 x 7000mm
  • CNC control: HEIDENHAIN iTNC 530 HSCI-E
  • No. of T-slots 28
  • Width of T-slots 28mm
  • Distance between slots 250mm
  • Max distance between table surface and spindle nose (direct outlet head) 2000mm
  • Width between columns 8000mm
  • Longitudinal travel X-axis 21,000mm
  • Cross travel Y-axis 7000mm
  • Vertical travel Z-axis 1500mm
  • Max load capacity 15,000 kg/m2
  • Speed in the head 6000 min?�
  • Working feed 20,000 mm/min
  • Rapid feed (X-axis) 20,000 mm/min; (Y and Z-axis) 50,000 mm/min
  • Main motor 43 kw
  • Tool taper DIN 69871-AD50
  • Pull stud ISO 7388/2-B50
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
