CNC Milling Machine

NMCZC004:

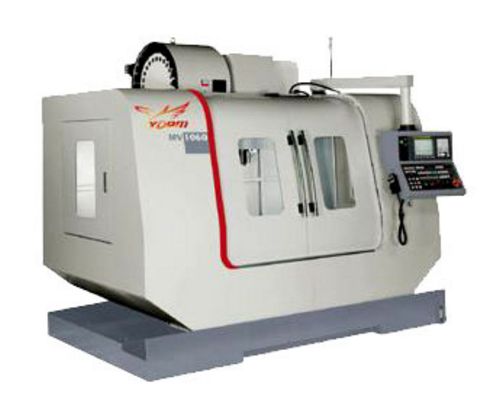

New, Taiwan MV-1060 Ball Type Linear Guideway Vertical Machining Center

• Table dimension 1180mm x 560mm
• Working area 1060mm x 620mm
• CNC control: FANCU 0i-MD
• T-slots CD125 x 8 x 4 mm
• Max table load 1000 kg
• Max travel range X/Y/Z axis: 1060/620/620 mm
• Distance from spindle nose to table surface 150-770mm
• Distance from spindle center to column 680mm
• Spindle taper ISO 40
• Spindle nose outer diameter 70mm
• Spindle speed 10,000 rpm
• Feed rate of X/Y/Z axis 1-6000 mm/min
• Slideways of X/Y/Z axis: linear guideway
• Rapid traverse of X/Y/Z axis 30/30/30 m/min
• Tool capacity 24 pieces
• Tool selection: by-direction & the shortest selection
• Max. adjacent tool: (diameter x length) 80 x 250 mm
• Max. tool weight 6 kg
• Tool shank: BT 40 or V40 CT or V40 ANSI
• Spindle motor 15/20 HP
• Servo motors of X /Y/Z axis 4 HP

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

Sunshine Innovation endeavours to satisfy your machinery requirements. Simply contact us!
