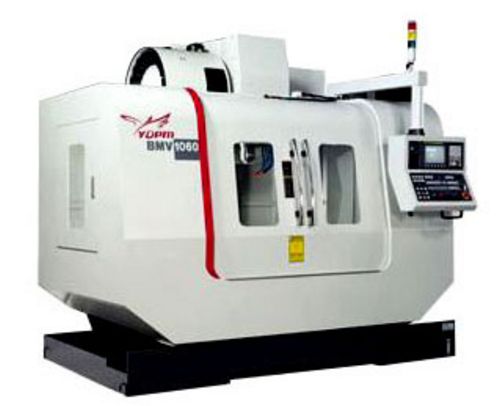

New, Taiwan BMV-1060 Boxway Vertical Machining Center
- Table dimension 1180mm x 560mm
- Working area 1060mm x 620mm
- CNC control: FANUC 0i-MD
- T-slots CD125 x 8 x 4 mm
- Max table load 1000 kg
- Max travel range X/Y/Z axis: 1060/620/620 mm
- Distance from spindle nose to table surface 150-770mm
- Distance from spindle center to column 680mm
- Spindle taper ISO 40
- Spindle nose outer diameter 70mm
- Spindle speed 10,000 rpm
- Feed rate of X/Y/Z axis 1-6000 mm/min
- Slideways of X/Y/Z axis: boxway
- Rapid traverse of X/Y/Z axis 18/18/18 m/min
- Tool capacity 24 pieces
- Tool selection: by-direction & the shortest selection
- Max. adjacent tool: (diameter x length) 80 x 250 mm
- Max. tool weight 6 kg
- Tool shank: BT 40 or V40 CT or V40 ANSI
- Spindle motor 15/20 HP
- Servo motors of X /Y/Z axis 4 HP
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
CNC Milling Machine Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
Our strong understanding of machinery allows us to offer solutions and machine recommendations to handle our customers' job requirements.
