Zhongyang Sams CNC Milling Machine


Taiwan TC-MVC-950 CNC Vertical Machining Center

NMCZC002:

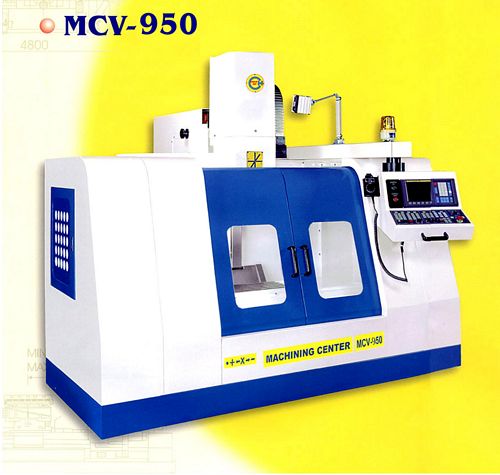

New, Taiwan TC-MVC-950 CNC Vertical Machining Center

  • Table size 1000mm x 520mm
  • T-slots 18mm x 4mm x 100mm
  • CNC control: MITSUBISHI M70A
  • Max table load 1500 kg
  • Longitudinal travel (X) 950mm
  • Vertical travel (Y) 520mm
  • Cross travel (Z) 550mm
  • Distance from spindle end to table 190-740mm
  • Distance from spindle center to column surface 500mm
  • Spindle taper BT40
  • Spindle speeds 35-10,000 rpm
  • Cutting feed 4000 mm/min
  • Rapid traverse movement: (mm/min) X,Y 20, Z 10
  • Accuracy positioning/repeatability +/- 0.02
  • ATC tool storage: 24 tools
  • Tool (dia. X length) 80 x 300mm
  • Max tool weight 8 kg
  • ATC time 2 - 3 sec
  • Spindle motor 10 HP
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
