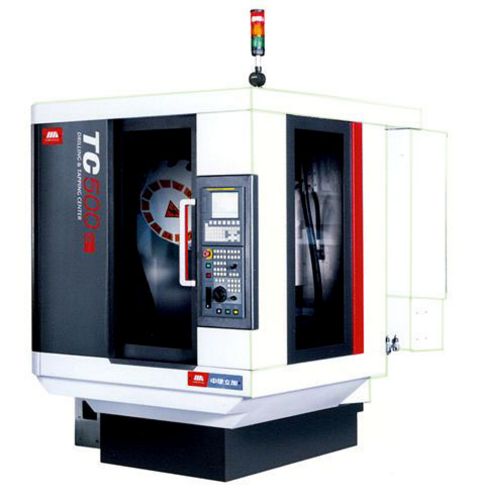

New, China Czech TC500R High Speed Drilling And Tapping Center
- X/Y/Z Traverse: 500/400/300mm
- CNC Control: FANUC 0i Mate-MD
- Worktable 650 x 400mm
- T-Slot Sizes (mm x N): 14 x 3
- Max Table Load 250 kg
- Distance Between Spindle Center to Worktable 150-450mm
- Spindle Taper Shank (7:24) BT30
- Spindle Speed 10,000 RPM
- Main Motor Torque 17.7 Nm
- Main Motor 3.7/5.5 kW
- Rapid Speed X/Y/Z: 48/48/48 m/min
- Feed Speed 30 m/min
- Turret Type Tool Magazine 14 Pockets
- Tool Change Time 1.4 s
- Diameter of Max Tool Pen: Full/Adjacent Station Empty Ø80mm/Ø125mm
- Positioning Accuracy: (Standard JISB6330) ±0.005/300mm; (Standard JISBT8771.4) 0.010mm
- Repeatability: (Standard JISB6330) ±0.003mm; (Standard JISBT8771.4) 0.008mm
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
CNC Milling Machine Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
Zhongyang is able to retrofit conventional machines with D.R.O. as per your request.
