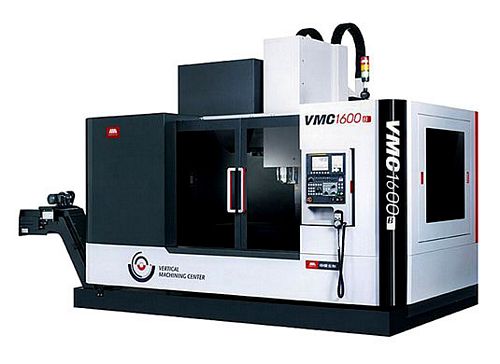

New, China Czech VMC1600B Vertical Machining Center
- X/Y/Z Traverse: 1600/800/800mm
- CNC Control: FANUC 0i-MD
- Worktable 1700 x 800mm
- T-Slot Sizes (mm x N): 22 x 5
- Max Table Load 2000 kg
- Distance Between Spindle Center And Worktable 140-940mm
- Taper Shank of Spindle (7:24) BT50
- Spindle Speed 6000 RPM
- Main Motor Torque 95.4 Nm
- X/Y/Z Rapid Traverse: 24/24/20 m/min
- Feed Speed 10 m/min
- Mechanical Arm Type Tool Magazine 20 Pockets
- Tool Change Time 3.5 s
- Positioning Accuracy: (Standard JISB6300) ±0.005/300mm; (Standard JB/T8771.4) 0.020/0.012/0.012mm
- Repeatability: (Standard JISB6300) ±0.003mm; (Standard JB/T8771.4) 0.012/0.010/0.008mm
- Main Motor 15/18.5 Kw
- General Power Capacity 37 Kva
- Air-Supply Pressure 0.5-0.7 Mpa
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
CNC Milling Machine Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
