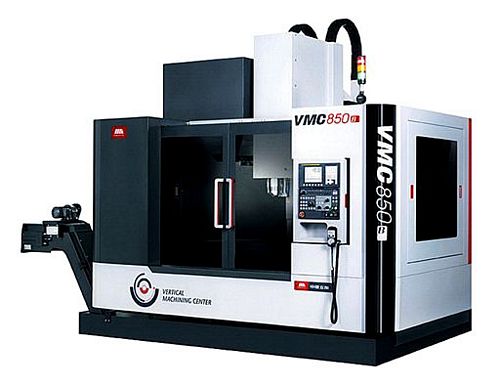

New, China Czech VMC850B Vertical Machining Center
- X/Y/Z Traverse: 850/560/650mm
- CNC Control: FANUC 0i-MD
- Worktable 1000 x 500mm
- T-Slot Sizes (mm x N): 18 x 5
- Max Table Load 600 kg
- Distance Between Spindle Center And Worktable 150-800mm
- Z Axis Travel 650mm
- Taper Shank of Spindle (7:24) BT40
- Spindle Speed 8000 RPM
- Main Motor Torque 52.5 Nm
- Main Motor 11/15 kW
- X/Y/Z Rapid Traverse: 32/32/24 m/min
- Feed Speed 20 m/min
- Disk-Type Tool Magazine 24 Pockets
- Tool Change Time 2.5 s
- Positioning Accuracy: (Standard JB6330) ±0.005/300mm; (Standard JB/T8771.4) 0.016/0.012/0.012mm
- Repeatability: (Standard JB6330) ±0.003mm; (Standard JB/T8771.4) 0.010/0.008/0.008mm
- General Power Capacity 25 kVA
- Air-Supply Pressure 0.5-0.7 Mpa
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
