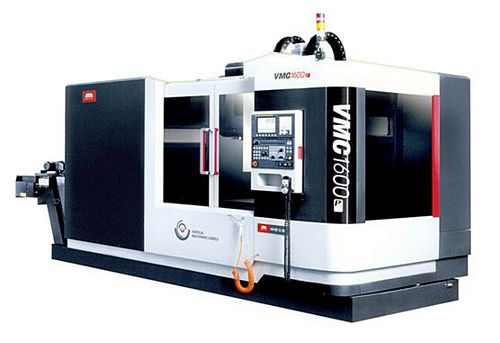

New, China Czech VMC1600P Vertical Machining Center
- X/Y/Z Traverse: 1600/800/800mm
- CNC Control: FANUC 0i-MD
- Worktable 1700 x 800mm
- T-Slot Sizes (mm x N): 22 x 5
- Max Table Load 2000 kg
- Distance Between Spindle Center And Worktable 200-1000mm
- Taper Shank of Spindle (7:24) BT50
- Spindle Speed 6000 RPM
- Main Motor Torque 95.4 Nm
- X/Y/Z Rapid Traverse: 18/18/18 m/min
- Feed Speed 10 m/min
- Mechanical Arm Type Tool Magazine 20 Pockets
- Tool Change Time 3.5 s
- Positioning Accuracy: (Standard JISB6300) ±0.005/300mm; (Standard JB/T8771.4) 0.015/0.012/0.012mm
- Repeatability: (Standard JISB6300) ±0.003mm; (Standard JB/T8771.4) 0.010/0.006/0.006mm
- Main Motor 15/18.5 Kw
- General Power Capacity 37 Kva
- Air-Supply Pressure 0.5-0.7 Mpa
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
