Sunshine Innovation Sams CNC Milling Machine


China Czech VMC1000P Vertical Machining Center

NMCSY018:

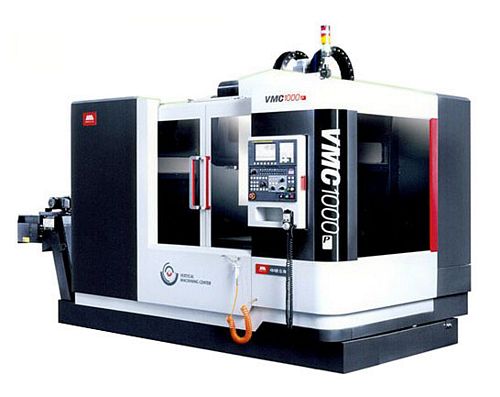

New, China Czech VMC1000P Vertical Machining Center

  • X/Y/Z Traverse: 1000/520/550mm
  • CNC Control: FANUC 0i-MD
  • Worktable 1200 x 520mm
  • T-Slot Sizes (mm x N): 18 x 5
  • Max Table Load 600 kg
  • Distance Between Spindle Center And Worktable 150-700mm
  • Taper Shank of Spindle (7:24) BT40
  • Spindle Speed 8000 RPM
  • Main Motor Torque 70 Nm
  • X/Y/Z Rapid Traverse: 36/36/36 m/min
  • Feed Speed 20 m/min
  • Mechanical Arm Type Tool Magazine 24 Pockets
  • Tool Change Time 2.5 s
  • Positioning Accuracy: (Standard JISB6300) ±0.005/300mm; (Standard JB/T8771.4) 0.012/0.010/0.010mm
  • Repeatability: (Standard JISB6300) ±0.003mm; (Standard JB/T8771.4) 0.008/0.006/0.006mm
  • Main Motor 11/15 Kw
  • General Power Capacity 25 Kva
  • Air-Supply Pressure 0.5-0.7 Mpa
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
