Zhongyang Sams CNC Milling Machine


China Czech VMC2180S Vertical Machining Center

NMCSY012:

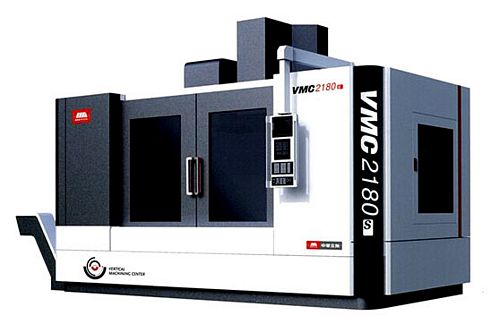

New, China Czech VMC2180S Vertical Machining Center

  • X/Y/Z Traverse: 2100/800/850mm
  • CNC Control: FANUC 0i-MD
  • T-Slot Size (mm x N): 22 x 5
  • Table Size 2000 x 800mm
  • Max Table Load 3000 kg
  • Spindle Speeds 20-4500 RPM
  • Taper Bore (7:24) BT50
  • Max Output Torque 560 Nm
  • Distance Between Spindle End and Table 200-1050mm
  • Spindle Motor 22/26 kW
  • Spindle Axial Resistance 12250 N
  • Distance Between Spindle Center and Guideway Face 1040mm
  • Rapid speed X/Y/Z: 15/15/10 m/min
  • Feed Speed 4 m/min
  • 3-Axis Drive Motor (X/Y/Z): 6/6/7 kW
  • Chain-Type Tool Magazine 32 Pockets
  • Max Tool Length 350mm; Weight 15 kg
  • Diameter of Max Tool Pen: Full/Adjacent Station Empty Ø125mm/Ø190mm
  • Tool Change Time (Tool to Tool) 3.5 s
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
