China Czech VMC630 Vertical Machining Center

NMCSY003:

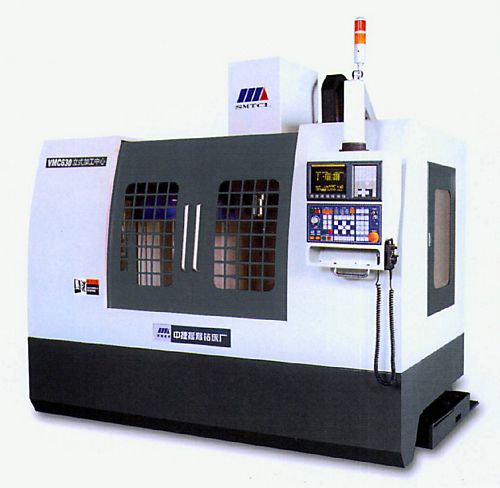

New, China Czech VMC630 Vertical Machining Center

  • Table Size 700x410 mm
  • Max Table Load 300 kg
  • X / Y / Z Traverse 630 x 410 x 410 mm
  • Distance Spindle Nose to Table 130-540 mm
  • Spindle Taper BT40
  • Spindle Speed 60-8000 RPM
  • Max Spindle Torque 26.3 Nm
  • Power of Main Motor 5.5/7.5 kW
  • Cutting Feed Speed 1-20000 mm/min
  • Rapid Traverse: X & Y 36 m/min, Z 24 m/min
  • Tool Magazine Max Tool Length 200 mm
  • Tool Magazine Type Circle
  • Tool Magazine Capacity 16
  • Max Diameter in Tool Magazine: 80 mm (150 mm If Adjacent Packet Empty)
  • Tool Change Time 2.8 s
  • Positioning Accuracy X, Y, Z: +/- 0.005/300 mm (JISB6192 Standard)
  • Repeatability X, Y, Z: +/- 0.003 mm (JISB6192 Standard)
  • Total Power Capacity 15 kVA
  • CNC Control Fanuc 0i
  • Overall Dimensions: 2,050 mm (L) x 2,500 mm (W) x 2,600 mm (H)
  • Weight approximately 4.2 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
