Zhongyang Sams CNC Milling Machine

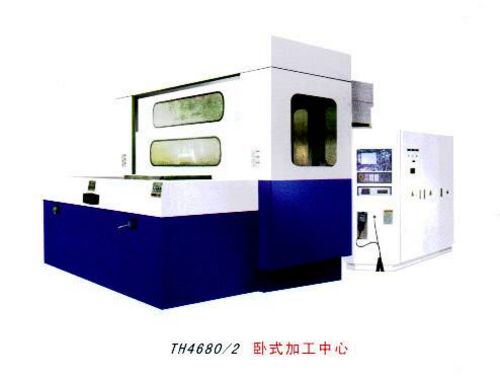

China TH4680/2 CNC Horizontal Machining Center


New, China TH4680/2 CNC Horizontal Machining Center

  • Table Size (L x W) 800 x 800 mm
  • Pallet Number 2
  • Max. Load of Table 2000 kg
  • Spindle Diameter 110 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 10-3000 RPM
  • Power of Spindle Motor (Rated /30Min) 15/20.5 kW
  • Max. Torque of Spindle 750 N.m
  • Max. Spindle Thrust 9435 N
  • Transverse Travel of Table 1200 mm
  • Vertical Travel of Spindle Head 1000 mm
  • Longitudinal Travel of Column 800 mm
  • Table Rotation 360 degrees
  • ATC Capacity 40
  • CNC System SIEMENS 840D(FANUC 18i)
  • Weight approximately 28 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
