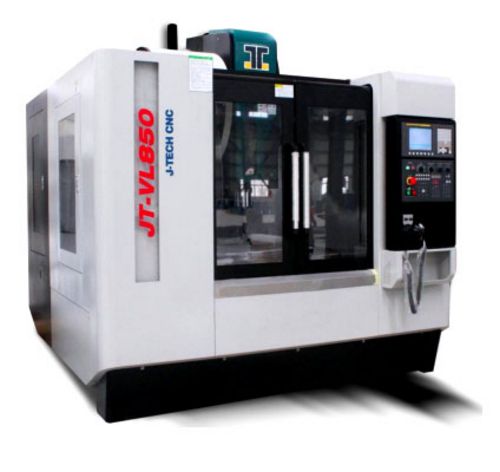

China JT-VL850 High Speed CNC Vertical Machining Center

NMCJT001:

New, China JT-VL850 High Speed CNC Vertical Machining Center

  • Table size 900 x 500mm
  • X/Y/Z axis travel 800/500/500mm
  • CNC control FANUC 0i mate MD
  • Max load 550 kg
  • T-slot (number x width x distance) 14 x 100 x 4
  • Distance from spindle nose to table surface 100-600mm
  • Distance from spindle center to column 550mm
  • Spindle speed 10,000 rpm
  • Spindle taper BT40
  • Arm type 24 tools
  • Tool change time 1.55 s
  • X/Y/Z axis motor torque 11/11/20 N.m
  • X/Y/Z rapid feed rate 48/48/48 m/min
  • Cutting feed rate 1-10000 mm/min
  • Positioning accuracy ±0.005mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
