Zhongyang Sams CNC Milling Machine

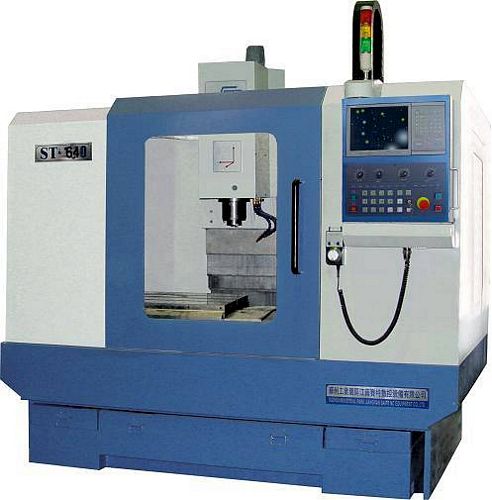

China ST640 CNC Milling Machine

NMCBM001:

New, China ST640 CNC Milling Machine

  • X -Axis Travel  610 mm
  • Y -Axis Travel 400 mm
  • Z -Axis Travel  500 mm
  • Table size 800 x 420 mm
  • Table Load 500 kg
  • Spindle Taper BT40#
  • Spindle Speed 50-8000 (BT50-6000) RPM
  • Distance between spindle nose to table 125mm-640 mm
  • Spindle motor specification 5.5/7.5(7.5/11) Kw
  • X,Y-Axes feed rate 10000(18000) mm/min
  • Z-axis feed rate 8000(16000) mm/min
  • 3-axes motor specification 1/1/1 Kw
  • Max. tool weight 6kg
  • Repeatable positioning accuracy +-0.004/300 mm
  • Pressure demanded 6.5kg/cm
  • Power consumption 12(15) Kva
  • Machine weight 4000 kg
  • Control system Mitsubishi M64S, E68, E60, or Fanuc Oimate
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc milling machine, milling center, milling centre), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
