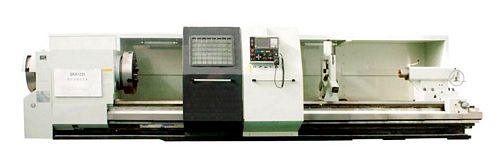

New, China QKA1226x3000 CNC Pipe Thread Lathe
- Max length of workpiece 3000mm
- Max cutting pipe diameter Ø70-260mm
- CNC control: FANUC 0i-TD
- Swing over bed 1000mm
- Swing over saddle 630mm
- Width of bed 755mm
- Max cutting length 2800mm
- Max weight of workpiece 5000 kg
- Diameter of spindle thru hole 275mm
- Type of main spindle center A2-20
- Range of spindle speeds 6-400 rpm
- Steps of spindle speeds AUTO-4
- Max travel of cross slide 630mm
- Travel of tailstock quill 300mm
- Taper hole of tailstock quill M6
- Diameter of tailstock quill 160mm
- Size of turret 300 x 300mm
- Size of cutter cross section 40 x 40mm
- Position no. of turret V4
- X axis position 0.03mm; Repeat position 0.012mm
- Z axis position 0.06mm; Repeat position 0.025mm
- Main motor 18.5 kw
- Cooling pump 90 W
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
