China QKA1246 CNC Pipe Thread Lathe

NLOWP007:

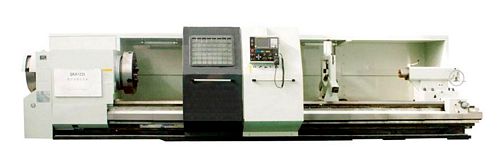

New, China QKA1246 CNC Pipe Thread Lathe

  • Max cutting pipe diameter 300-460mm
  • Swing over bed 1250mm
  • CNC control: SIEMENS 802D
  • Swing over saddle 900mm
  • Width of bed 1100mm
  • Max length of workpiece 1500/3000/5000mm
  • Max cutting length 1300/2800/4800mm
  • Max weight of workpiece 5000 kg
  • Diameter of spindle thru hole 465mm
  • Type of main spindle center A2-28
  • Range of spindle speeds 5-200 rpm
  • Steps of spindle speeds AUTO-4
  • Max travel of cross slide 800mm
  • Travel of tailstock quill 300mm
  • Taper hole of tailstock quill M6
  • Diameter of tailstock quill 200mm
  • Size of turret 380 x 380mm
  • Size of cutter cross section 50 x 50mm
  • Position no. of turret V4
  • X axis position 0.03mm
  • Repeat position 0.012mm
  • Z axis position (1500/3000/5000mm): 0.045/0.06/0.08 mm
  • Repeat position (1500/3000/5000mm): 0.02/0.025/0.025 mm
  • Main motor 28/38 kw
  • Cooling pump 150 W
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used oil country lathe (oil country lathe, big bore lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
