China QKA1226 CNC Pipe Thread Lathe

NLOWP005:

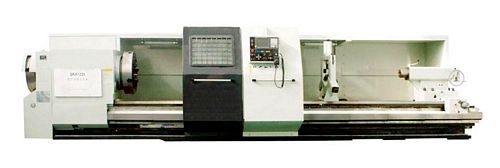

New, China QKA1226 CNC Pipe Thread Lathe

  • Max cutting pipe diameter 70-260mm
  • Swing over bed 1000mm
  • CNC control: FANUC 0i-TD
  • Swing over saddle 630mm
  • Width of bed 755mm
  • Max length of workpiece 1500/3000/5000mm
  • Max cutting length 1300/2800/4800mm
  • Max weight of workpiece 5000 kg
  • Diameter of spindle thru hole 275mm
  • Type of main spindle center A2-20
  • Range of spindle speeds 6-400 rpm
  • Steps of spindle speeds AUTO-4
  • Max travel of cross slide 630mm
  • Travel of tailstock quill 300mm
  • Taper hole of tailstock quill M6
  • Diameter of tailstock quill 160mm
  • Size of turret 300 x 300mm
  • Size of cutter cross section 40 x 40mm
  • Position no. of turret V4
  • X axis position 0.03mm
  • Repeat position 0.012mm
  • Z axis position (1500/3000/5000mm): 0.045/0.06/0.08 mm
  • Repeat position (1500/3000/5000mm): 0.02/0.025/0.025 mm
  • Main motor 18.5 kw
  • Cooling pump 90 W
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used oil country lathe (oil country lathe, big bore lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
