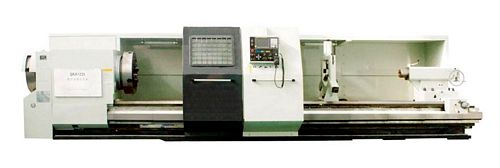

New, China QKA1219 CNC Pipe Thread Lathe
- Max cutting pipe diameter 190mm
- Swing over bed 770mm
- CNC control: FANUC 0i Mate-TD
- Swing over saddle 480mm
- Width of bed 550mm
- Max length of workpiece 1000/1500/2000/3000mm
- Max cutting length 850/1350/1850/2850m
- Max weight of workpiece 1500 kg
- Diameter of spindle thru hole 200mm
- Type of main spindle center C11
- Range of spindle speeds 90-450 rpm
- Steps of spindle speeds MANUL-2, AUTO-4
- Max travel of cross slide 390mm
- Travel of tailstock quill 250mm
- Taper hole of tailstock quill M5
- Diameter of tailstock quill 100mm
- Size of turret 240 x 240mm
- Size of cutter cross section 32 x 32mm
- Position no. of turret V4
- X axis position 0.03mm
- Repeat position 0.012mm
- Z axis position (1000/1500/2000/3000mm): 0.04/0.045/0.05/0.06 mm
- Repeat position (1000/1500/2000/3000mm): 0.016/0.02/0.025/0.025 mm
- Main motor 11 kw
- Cooling pump 90 W
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
