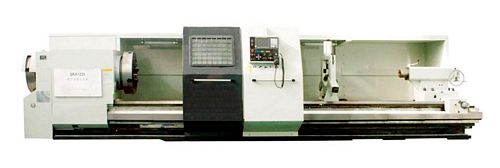

China QKA1212 CNC Pipe Thread Lathe


New, China QKA1212 CNC Pipe Thread Lathe

  • Max cutting pipe diameter 120mm
  • Swing over bed 770mm
  • CNC control: FANUC 0i Mate-TD
  • Swing over saddle 480mm
  • Width of bed 550mm
  • Max length of workpiece 1000/1500/2000/3000mm
  • Max cutting length 850/1350/1850/2850mm
  • Max weight of workpiece 1500 kg
  • Diameter of spindle thru hole 130mm
  • Type of main spindle center C11
  • Range of spindle speeds 25-800 rpm
  • Steps of spindle speeds MANUL-3, AUTO-6
  • Max travel of cross slide 390mm
  • Travel of tailstock quill 250mm
  • Taper hole of tailstock quill M5
  • Diameter of tailstock quill 100mm
  • Size of turret 240 x 240mm
  • Size of cutter cross section 32 x 32mm
  • Position no. of turret V4
  • X axis position 0.03mm
  • Repeat position 0.012mm
  • Z axis position (1000/1500/2000/3000mm): 0.04/0.045/0.05/0.06 mm
  • Repeat position (1000/1500/2000/3000mm): 0.016/0.02/0.025/0.025 mm
  • Main motor 11 kw
  • Cooling pump 90 W
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used oil country lathe (oil country lathe, big bore lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
