Zhongyang Sams Oil Country Lathe


China CW6636/3000 Oil Country Lathe

NLOWP002:

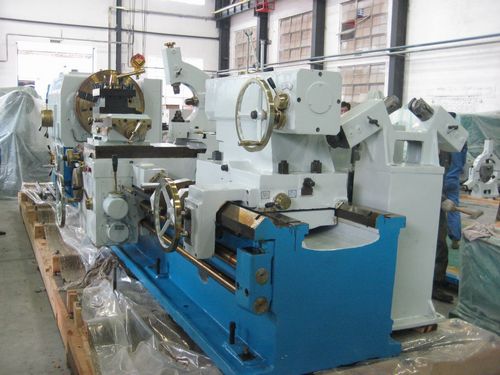

New, China CW6636/3000 Oil Country Lathe

  • Max swing over bed 1000mm
  • Distance between centres 3000mm
  • Max swing over carriage 640mm
  • Swing over gap 1250mm
  • Length to be machined 2800mm
  • Support capacity between centers 6 tons
  • Diameter of spindle bore 360mm
  • Min clamped diameter of chuck 240mm
  • Spindle speed 6.3-315 RPM with 18 steps
  • Metric thread and pitch range: 44 kinds; 1 to 120mm
  • Whitworth thread and range: 37 kinds; 30 to 1+1/8 teeth/in.
  • Modular thread and range: 46 kinds; 0.5 to 60mm
  • Rapid traverse: Saddle 3740 mm/min; Cross slide 1840 mm/min; Top slide 935 mm/min
  • Max travel of tool post 300mm
  • Max travel of cross slide 520mm
  • Diameter of tailstock sleeve 160mm
  • Travel of tailstock sleeve 300mm
  • Taper of tailstock sleeve Metric no. 80
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used oil country lathe (oil country lathe, big bore lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
