Zhongyang Sams Lathe


China CK6180F/3000 Lathe

NLLZC003:

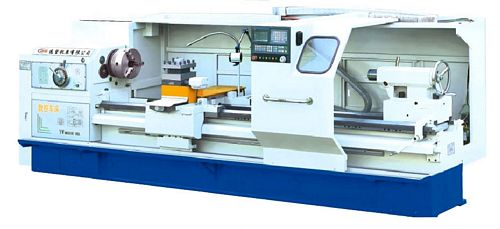

New, China CK6180F/3000 Lathe

  • Max swing over bed 800mm
  • Between centers 3000mm
  • Max swing over saddle 520mm
  • Width of main rail bed 550mm / auxiliary guide 650mm
  • Spindle end code D11
  • Spindle bore diameter 100mm
  • Spindle taper hole diameter 120mm
  • Spindle speed 6 - 800 r/min
  • Mobile carrier rapid pace 3800/6000mm
  • Max travel of X-axis 450mm
  • Industry tool industry median H4 / V6 / V8
  • Arbour section 32 x 32 mm
  • Tailstock diameter sleeve 100mm
  • Tailstock diameter travel 250mm
  • Tailstock taper sleeve hole No. 5
  • Main motor 11 kw
  • Max load 3000 kg
  • Overall Dimensions: 5,010 mm (L) x 1,495 mm (W) x 1,590 mm (H)
  • Weight approximately 6.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
