China CW62125F/6000 Gap Bed Lathe

NLLZC002:

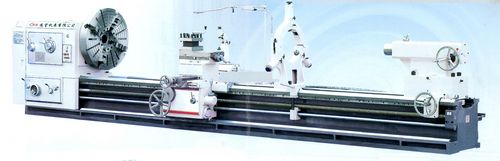

New, China CW62125F/6000 Gap Bed Lathe

  • Max swing over bed 1250mm
  • Max length of workpiece 6000mm
  • Max swing in gap 1620mm
  • Width of main rail bed 755mm / Auxiliary guide 855mm
  • Spindle end code D11
  • Spindle bore diameter 100mm
  • Spindle taper hole 120mm
  • Spindle speed 2 - 220 r/min
  • Range of longitudinal feeds 0.1 - 24.3 mm/r (64 kinds)
  • Range of horizontal feeds 0.05 - 12.15 mm/r (64 kinds)
  • Scope of tool post feed 0.05 - 12.5 mm/r (64 kinds)
  • Max travel of tool post 250mm
  • Max travel of horizontal 710mm
  • Arbour section 32 x 32mm
  • Tailstock diameter sleeve/travel: 120mm/250mm
  • Tailstock taper sleeve hole No. 5
  • Metric threads 1 - 240 mm/r (50 kinds)
  • Whitworth threads 14 - 1 TPI (26 kinds)
  • Module threads 0.5 - 120 mm/r (53 kinds)
  • Diametric threads 1 - 28 DP (24 kinds)
  • Max load 8000 kg
  • Main motor 11 kW
  • Overall Dimensions: 8,010 mm (L) x 2,150 mm (W) x 1,825 mm (H)
  • Weight approximately 15 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
