China CY6266L/3000 Gap Bed Lathe

NLLYN034:

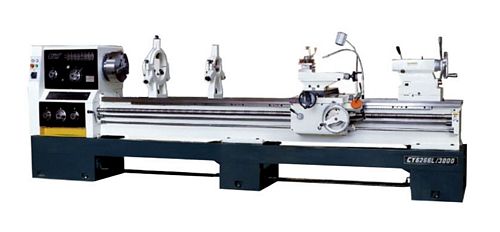

New, China CY6266L/3000 Gap Bed Lathe

  • Between centers 3000mm
  • Swing over bed 660mm
  • Swing over saddle 430mm
  • Swing in gap 870mm
  • Width of gap 240mm
  • Width of bed 390mm
  • Spindle nose D8
  • Spindle bore diameter 105mm
  • Spindle taper 1:20
  • Spindle speed 6-1120 rpm (24 steps)
  • Max output torque of spindle 1500 N.m
  • Range of longitudinal feed 0.063-6.43 mm/rev (0.0025-0.25 in/rev)
  • Range of cross feed 0.027-2.73 mm/rev (0.00106-0.107 in/rev)
  • Lead screw pitch 12 mm (metric); 2 TPI (inch)
  • Range of threads: Metric 1-224mm (46); Inch 28-1/8 TPI (42); Module 0.5-112 mm (42); Diametric pitch 56-1/4 DP (45)
  • Cross slide / top slide travel: 360mm / 200mm
  • Longitudinal rapid travel speed: 4.5 m/min (50 HZ); 5.4 m/min (60 HZ)
  • Transversal rapid travel speed: 1.9 m/min (50 HZ); 2.3 m/min (60 HZ)
  • Tailstock quill taper MT5
  • Tailstock quill max travel / diameter: 150mm / 75mm
  • Main motor 11 kw
  • Rapid feed motor 250W  1360 rpm
  • Coolant pump motor 90W  25 L/min
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
