China CW61125B/5000 Heavy Duty Lathe

NLLYN031:

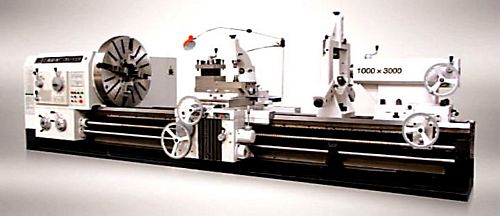

New, China CW61125B/5000 Heavy Duty Lathe

  • Between centers 5000mm
  • Max cutting length 4800mm
  • Swing over bed 1250mm
  • Swing over saddle 860mm
  • Width of bed 755mm
  • Spindle bore 130mm
  • Spindle taper 140mm  1:20
  • Spindle speed: 3.15-315 rpm (N1) forward; 3.5-278 rpm (N1) reverse; 2-200 rpm (N2) forward; 2.24-178 rpm (N2) reverse
  • Feed range of tool post per rev. of spindle:
  • Longitudinal 0.10-12 mm ; Cross 0.05-6 mm; Top slide 0.025-3 mm; Special gears - half of standard feed
  • Range of threads: Metric 1-120 mm (44); Inch 28-1/4 TPI (31); Module 0.5-60 mm (45); Diametric pitch 1/2-56 DP (38)
  • Section of tool post 40 x 40mm
  • Travel of cross slide / top slide: 520mm / 300mm
  • Tailstock quill diameter / travel: 160mm / 300mm
  • Tailstock quill taper MT6
  • Rapid motor 1.5 kw
  • Coolant pump 120W
  • Oil pump 120W
  • Main motor 22 kw
  • Max overload between centers 5000 kg
  • Overall Dimensions: 8,100 mm (L) x 2,275 mm (W) x 1,825 mm (H)
  • Weight approximately 17 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
