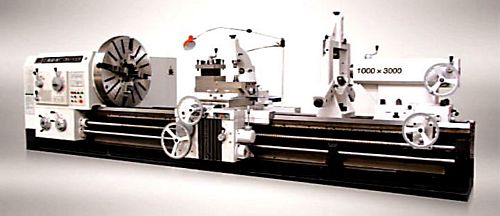

New, China CW61100B/1500 Heavy Duty Lathe
- Between centers 1500mm
- Max cutting length 1300mm
- Swing over bed 1000mm
- Swing over saddle 610mm
- Width of bed 755mm
- Spindle bore 130mm
- Spindle taper 140mm 1:20
- Spindle speed: 3.15-315 rpm (N1) forward; 3.5-278 rpm (N1) reverse; 2-200 rpm (N2) forward; 2.24-178 rpm (N2) reverse
- Feed range of tool post per rev. of spindle:
- Longitudinal 0.10-12 mm ; Cross 0.05-6 mm; Top slide 0.025-3 mm; Special gears half of standard feed
- Range of threads: Metric 1-120 mm (44); Inch 28-1/4 TPI (31); Module 0.5-60 mm (45); Diametric pitch 1/2-56 DP (38)
- Section of tool post 40 x 40mm
- Travel of cross slide / top slide: 520mm / 300mm
- Tailstock quill diameter / travel: 160mm / 300mm
- Tailstock quill taper MT6
- Rapid motor 1.5 kw
- Coolant pump 120W
- Oil pump 120W
- Main motor 22 kw
- Max overload between centers 5000 kg
- Overall Dimensions: 4,600 mm (L) x 2,150 mm (W) x 1,700 mm (H)
- Weight approximately 11 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
