China CW6280B/2000 Universal Gap Bed Lathe

NLLYN022:

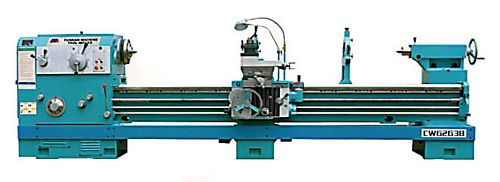

New, China CW6280B/2000 Universal Gap Bed Lathe

  • Between centers 2000mm
  • Max cutting length 1850mm
  • Swing over bed 800mm
  • Swing over saddle 520mm
  • Swing in gap 1000mm
  • Width of gap 300mm
  • Width of bed 550mm
  • Spindle nose and bore C11; 100mm
  • Spindle taper 1:20  120
  • Spindle speeds 6-800 rpm (18 steps)
  • Longitudinal and cross feed: 64; 0.1-24.32 r/min
  • Lead screw pitch 12mm
  • Range of threads: Metric 1-240 mm (50), Inch 14-1 TPI (26); Module 0.5-120 mm (53); Diametric pitch 28-1 TPI (24)
  • Rapid traverse speed of carriage 4000 mm/min
  • Max travel of cross slide / top slide: 540mm / 200mm
  • Tailstock quill diameter / travel: 100mm / 250mm
  • Tailstock quill taper MT5
  • Main motor 11 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
