Lathe

NLLYN020:

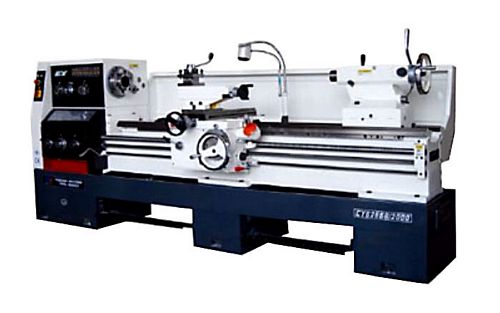

New, China CY6266B/2000 Gap Bed Lathe

Between centers 2000mm
Swing over bed 660mm
Swing over saddle 430mm
Swing in gap 870mm
Width of gap 240mm
Width of bed 390mm
Spindle nose D8
Spindle bore diameter 82mm
Spindle taper MT6
Spindle speed 9-1600 rpm (24 steps)
Max output torque of spindle 1500 N.m
Range of longitudinal feed 0.028-6.43 mm/rev
Range of cross feed 0.12-2.73 mm/rev
Lead screw pitch 12 mm (metric); 2 TPI (inch)
Range of threads: Metric 0.5-224mm (48); Inch 72-1/8 TPI (46); Module 0.5-112 mm (42); Diametric pitch 56-1/4 DP (45)
Cross slide / top slide travel: 360mm / 200mm
Longitudinal rapid travel speed: 4.5 m/min (50 Hz); 5.4 m/min (60 Hz)
Transversal rapid travel speed: 1.9 m/min (50 Hz); 2.3 m/min (60 Hz)
Tailstock quill taper MT5
Tailstock quill max travel / diameter: 150mm / 75mm
Main motor 7.5 kw
Rapid feed motor 250W 1360 rpm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
