Zhongyang Sams Lathe

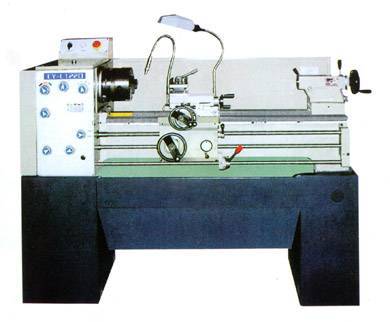

China CY-L1220 Series Lathe


New, China CY-L1220 Series Lathe

  • Swing Over Bed 300mm
  • Swing Over Cross Slide 170mm
  • Distance Between Centre 500mm
  • Length of Gap Front of Face Plate 137mm
  • Spindle Speed 60-2000 (9 steps)
  • Spindle Bore Diameter 38mm
  • Inch System Threads 4-72 TPI (33 kinds)
  • Metric Threads 0.25-9mm (20 kinds)
  • Module Threads 0.25-3.5mm
  • Diametral pitch threads 8-144 (29 kinds)
  • Range of Longitudinal Feed 0.003-0.42mm/rev
  • Range of Cross Feed 0.015-0.21mm/rev
  • Main Motor 1.1kW
  • Coolant Pump Motor 90W
  • Gross Weight 420kgs
  • Dimension 1410 x 750 x 1520cm
  • Overall Dimensions: 1,410 mm (L) x 750 mm (W) x 1,520 mm (H)
  • Weight approximately 420 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
