Zhongyang Sams Lathe

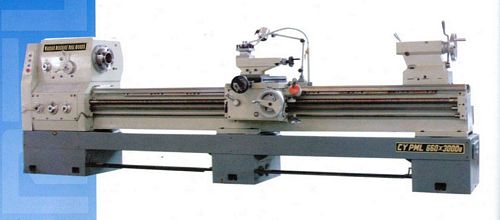

China CYPML 500 Series Lathe

NLLYN014:

New, China CYPML 500 Series Lathe

  • Swing Over Bed 500mm
  • Swing Over Slide 300mm
  • Length of Workpiece 2000mm
  • Spindle Nose to ISO 702/11: D8 D11
  • Spindle Thru - Bore Diameter 105 mm (4.13’’)
  • 24 Steps Spindle Speeds 6-1120 r/min
  • Max. Main Cutting Edge 13700N (3080 lbf)
  • Longitudinal Feeds 0.063
  • Transversal Feeds 0.027 - 2.73mm/rev(0.00106 - 0.107in/rev
  • 46 Steps Metric Threads 1-224mm
  • 45 Steps Inch Threads 28-1/8in
  • 42 Steps Module Threads 0.5-112mm
  • 45 Steps Diametral Pitch Threads 56-1/4 DP
  • Cross Slide Travel (max) 300mm
  • Top Slide Travel (max) 150mm
  • Longitudinal Rapid Travelling Speed 50 Hz - 1.9m/min
  • Sleeve Diameter 75 mm
  • Morse Taper  of Sleeve Bore M5
  • Sleeve Travel 150mm
  • Main Drive Motor 7.5kW
  • Rapid Travel Motor 250W
  • Coolant Pump Motor 90 W
  • Overall Dimensions: 2,700 mm (L) x 1,130 mm (W) x 1,800 mm (H)
  • Weight approximately 2.2 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
