China CY-6266B Universal Gap Bed Lathe

NLLYN013:

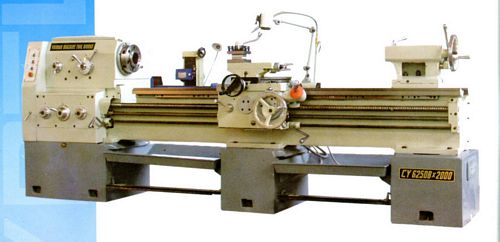

New, China CY-6266B Universal Gap Bed Lathe

  • Swing Over Bed 660mm
  • Swing Over Cross Slide 380mm
  • Swing In Gap 710mm
  • Width of Gap 240mm
  • Width of Bed 390mm
  • Length of workpiece (max) 750, 1000, 2000, 3000mm
  • Spindle Nose D8
  • Taper of Spindle Center 1:20
  • Spindle Bore Diameter 82mm
  • Spindle Speed 9-1600 RPM
  • Max. Output Torque of Spindle 1470 N.m
  • Range of Longitudinal Feed 0.028-6.43mm/rev
  • Range of Transverse Feed 0.12-2.73mm/rev
  • Lead Screw Pitch 12mm (metric system) 2TPI (inch system)
  • Lead Screw Diameter 40 mm
  • Metric Threads 1-224 mm (48 Pitches)
  • Inch Threads 72 - 1/8 TPI (48 Pitches)
  • Module Threads 0.5 - 112mm (42 Pitches)
  • Diameter Pitch Threads 56-1/4DP (45 Pitches)
  • Cross Slide Travel (Max) 350mm
  • Top Slide Travel (Max) 170mm
  • Longitudinal Rapid Travelling Speed 4.5m/min (50HZ)
  • Transversal Rapid Travelling Speed 1.9m/min (50HZ)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
