China CY-6250B Universal Gap Bed Lathe

NLLYN012:

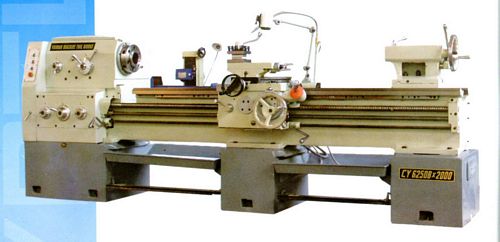

New, China CY-6250B Universal Gap Bed Lathe

  • Swing Over Bed 500mm
  • Swing Over Cross Slide 300mm
  • Swing In Gap 710mm
  • Width of Gap 240mm
  • Width of Bed 390mm
  • Length of work piece (max) 750, 1000, 2000, 3000mm
  • Spindle Nose D8
  • Taper of Spindle Centre 1:20
  • Spindle Bore Diameter 82mm
  • Spindle Speed 9-1600 RPM
  • Max. Output Torque of Spindle 1470 N.m
  • Range of Longitudinal Feed 0.028-6.43mm/rev
  • Range of Transverse Feed 0.12-2.73mm/rev
  • Metric Threads 1-224 mm (48 Pitches)
  • Module Threads 0.5 - 112mm (42 Pitches)
  • Cross Slide Travel (Max) 350mm
  • Sleeve Diameter 75mm
  • Morse taper of sleeve M5
  • Main Drive Motor 150mm
  • Rapid Travel Motor 7.5kW, 11kW (Optional)
  • Coolant Pump Motor 90W
  • Overall Dimensions: 2,700 mm (L) x 1,120 mm (W) x 1,700 mm (H)
  • Weight approximately 2.1 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
