Lathe

NLLYN011:

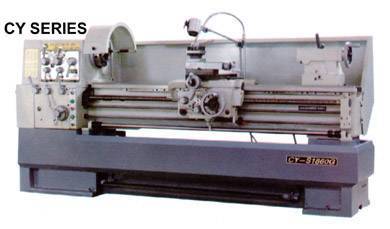

New, China CY-S2060B High Speed Gap Bed Lathe

Swing Over Bed 510mm
Swing Over Cross Slide 320mm
Distance Between Centre 1000mm, 1500mm
Swing in Gap 734mm
Width of Bed 275mm
Spindle Nose 300mm
Spindle Bore Diameter D8
Morse Taper of Spindle Centre 82mm
Spindle Speed M6
Inch System Threads 15-1500 RPM (12 step)
Metric Threads 2-56TPI
Range of Longitudinal Feeds 0.5-14mm
Range of Transverse Feeds 0.06-082mm/rev
Lead Screw Diameter 35mm
Lead Screw Pitch 6mm (metric system)
Tailstock Centre taper M4
Max. Travel of Tailstock quill 127mm
Tailstock quill Diameter 58mm
Main Motor 7.5kW 5.5kW (Optional)
Coolant Pump 0.1kW
Overall Dimensions: 2,880 mm (L) x 1,120 mm (W) x 1,700 mm (H)
Weight approximately 1.8 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
