Zhongyang Sams Lathe

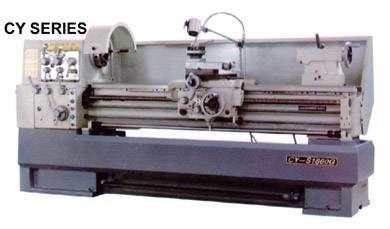

China CY-S1760G High Speed Gap Bed Lathe

NLLYN005:

New, China CY-S1760G High Speed Gap Bed Lathe

  • Swing Over Bed 425mm
  • Swing Over Cross Slide 240mm
  • Distance Between Centres 1000mm, 1500mm
  • Swing in Gap 650mm
  • Width of Bed 275mm
  • Spindle Nose 300mm
  • Spindle Bore Diameter D6
  • Morse Taper of Spindle Centre 57mm
  • Spindle Speed M6
  • Inch System Threads 20-2000 RPM (12 step)
  • Metric Threads 2-56TPI
  • Range of Longitudinal Feeds 0.5-14mm
  • Range of Transverse Feeds 0.06-082mm/rev
  • Lead Screw Diameter 35mm
  • Lead Screw Pitch 6mm (metric system)
  • Tailstock Centre taper M4
  • Max. Travel of Tailstock quill 127mm
  • Tailstock quill Diameter 58mm
  • Main Motor 5.5kW
  • Coolant Pump 0.1kW
  • Overall Dimensions: 2,880 mm (L) x 1,120 mm (W) x 1,700 mm (H)
  • Weight approximately 1.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
