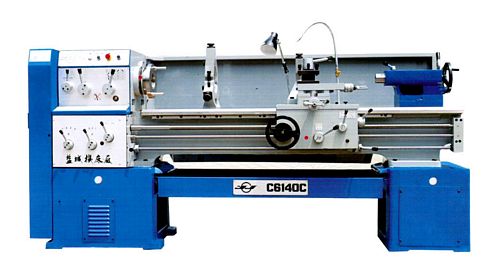

New, China C6240C/1500 Gap Bed Lathe
- Between centers 1500mm
- Swing over bed 400mm
- Swing over cross slide 230mm
- Swing over gap 560mm
- Bed width 360mm
- Spindle hole Ø52mm
- Spindle nose C6
- Spindle taper MT6
- Spindle speed 40-1400 RPM (9 steps)
- Threads: Metric 0.25-14 mm (19 kinds); Inch 2-40/inch; Module 0.5-3.5mπ (11 kinds)
- Cross slide travel 180mm
- Compound rest travel 95mm
- Cross section size of tool shank 20 x 20 mm²
- Taper of tailstock sleeve MT4
- Diameter of tailstock sleeve 65mm
- Travel of tailstock sleeve 140mm
- Main motor 4 kw
- Overall Dimensions: 2,970 mm (L) x 1,150 mm (W) x 1,590 mm (H)
- Weight approximately 2.3 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
