China C6136A/1000 Engine Lathe

NLLYC037:

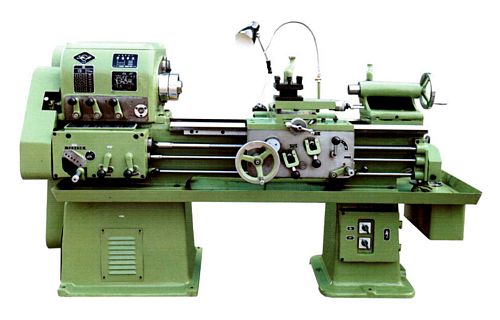

New, China C6136A/1000 Engine Lathe

  • Between centers 1000mm
  • Swing over bed 360mm
  • Max turning length 900mm
  • Swing over carriage 190mm
  • Screw cutting capacity: Metric 0.3-10 mm; Inch 24-1.5 TPI
  • Compound rest 95mm
  • Cross slide 180mm
  • Spindle speed 42-980 r/min (8 steps)
  • Turning accuracy: Roundness 0.01mm; Cylindricity 0.01/Ø100 mm; Planeness 0.015/Ø200 mm; Roughness 1.6µ
  • Diameter of spindle through hole 52mm
  • Main motor 4. kw
  • Total power 4.125 kw
  • Overall Dimensions: 2,170 mm (L) x 870 mm (W) x 1,260 mm (H)
  • Weight approximately 1.4 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
